MX10IB3-SG-WH Subwoofer Marino 25 Cm

JL Audio MX10IB3-SG-WH Serie MX subwoofer 250 mm di alta gamma per uso nautico. Garantito dal miglior servizio RGsound.it. Griglia sportiva inclusa. MX10IB3-SG-WH è realizzato per installazioni da incasso con grande volume di lavoro.



La Serie MX di JL Audio garantisce delle buone prestazioni sonore abbinate ad un prezzo scontato.



Potenza RMS 175 W

Impedenza 4 Ohm

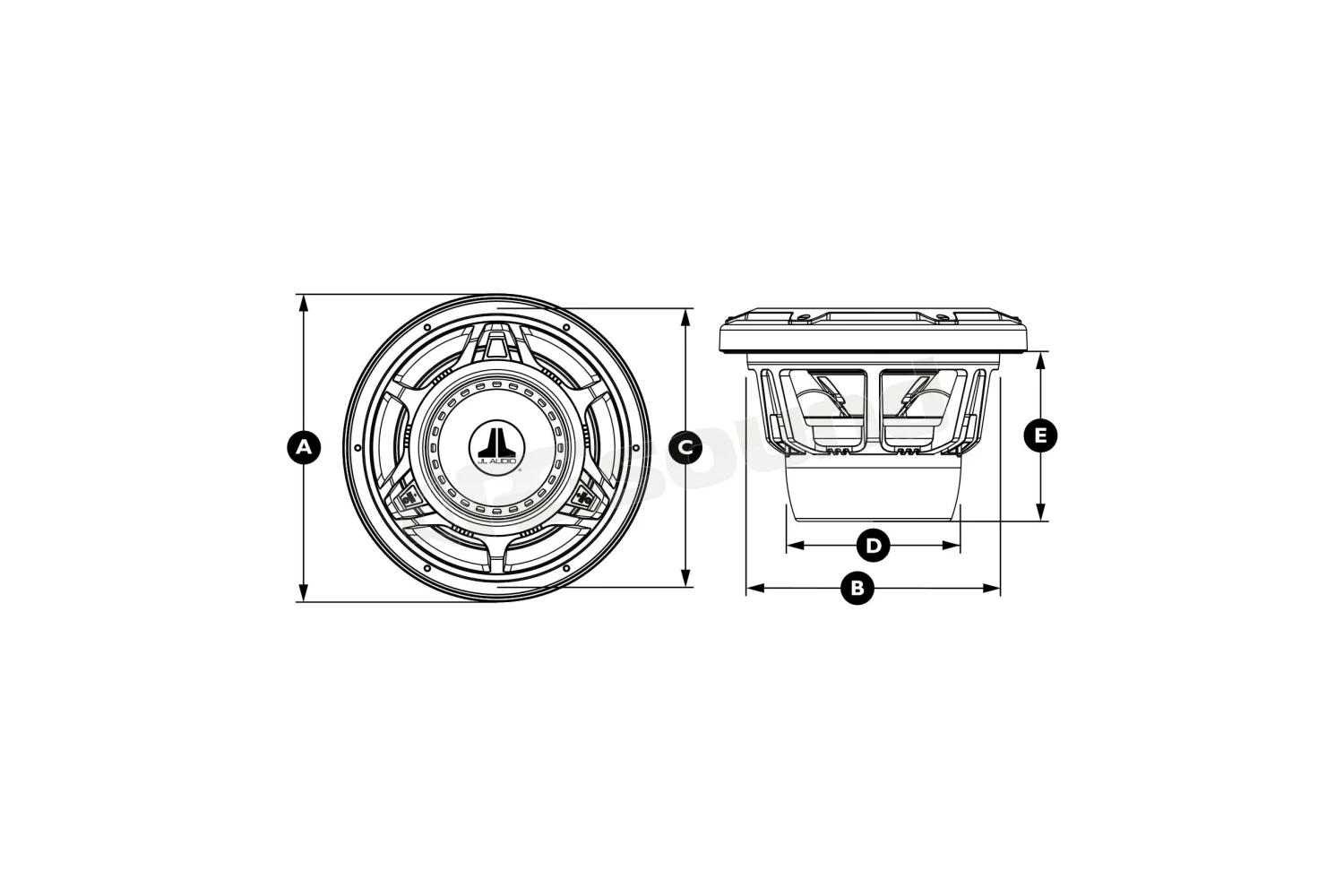

Grafico e dimensioni del MX10IB3-SG-WH:



Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.75 in / 273 mm
Mounting Hole Diameter (B) 8.875 in / 225 mm
Bolt Hole Circle (C) 9.706 in / 247 mm
Motor Overmold Outer Diameter (D) 5.29 in / 134 mm
Mounting Depth (E) 5.12 in / 130 mm
Driver Displacement 0.04 cu ft / 1.13 L
Net Weight 6.5 lb / 2.94 kg





Parametri MX10IB3-SG-WH

Free Air Resonance (Fs) 41.84 Hz
Electrical “Q” (Qes) 0.806
Mechanical “Q” (Qms) 11.751
Total Speaker “Q” (Qts) 0.754
Equivalent Compliance (Vas) 1.29 cu ft / 36.53 L
One-Way Linear Excursion (Xmax)* 0.42 in / 11 mm
Reference Efficiency (no) 0.28%
Efficiency (1 W / 1 m)** 87.23 dB SPL
Effective Piston Area (Sd) 50.68 sq in / 0.0327 sq m
DC Resistance (Re) 3.957 Ω
Minimum Sealed Enclosure Volume 1.25 cu ft / 35.4 L
Optimum Sealed Enclosure Volume 2.0 cu ft / 56.6 L (or larger)
Infinite Baffle Use Yes

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
