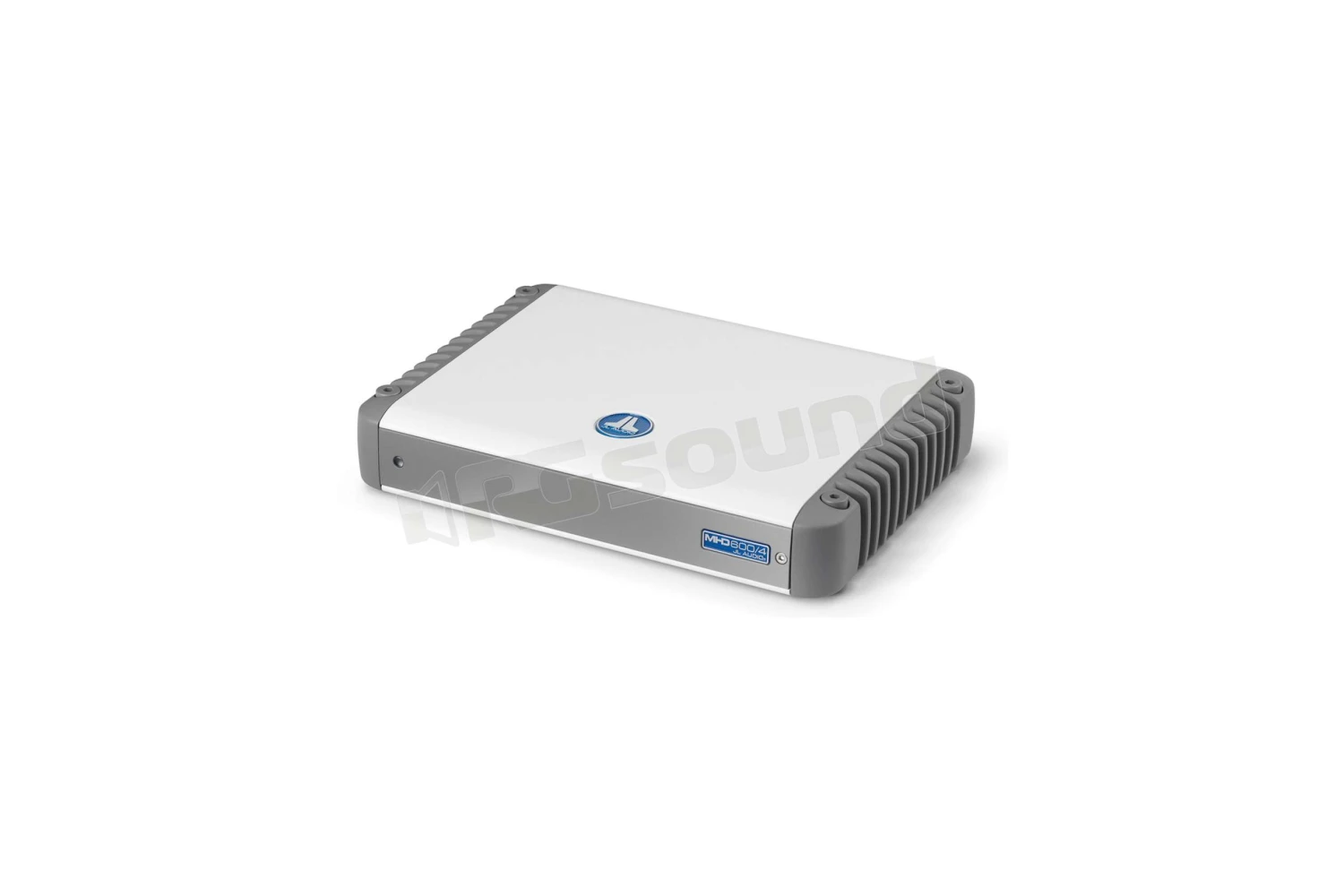

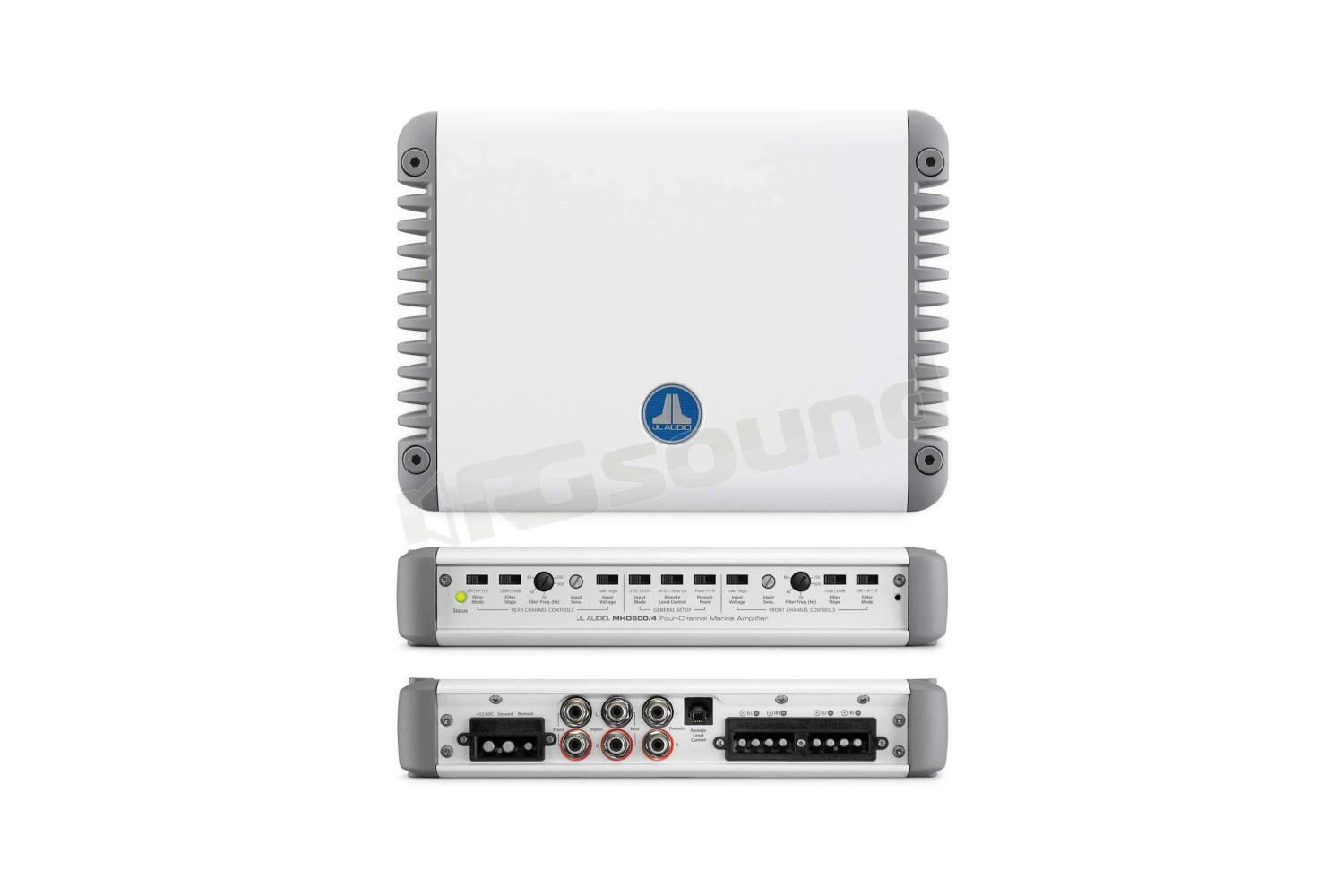

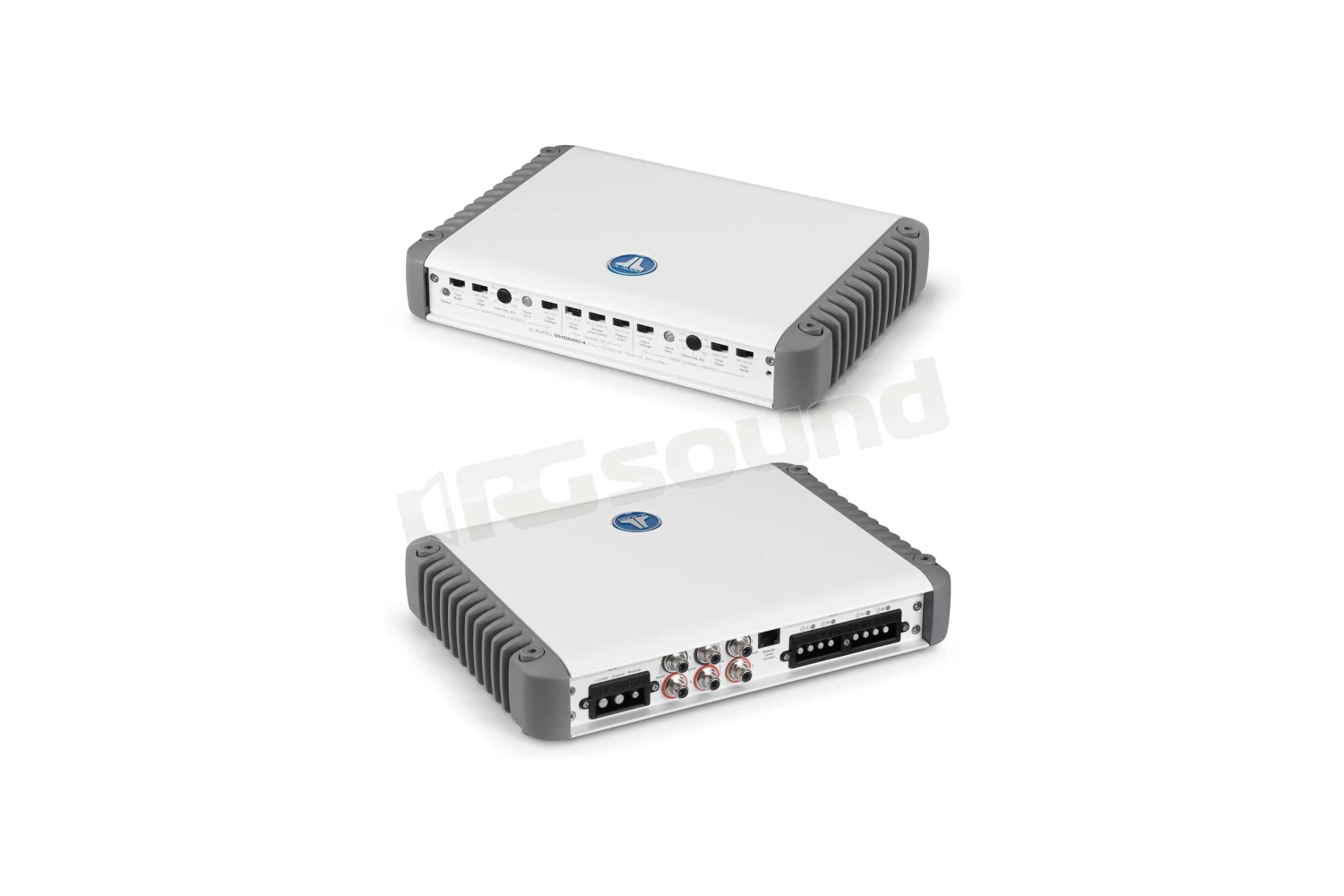

MHD600/4 Amplificatore Marino Quattro Canali

JL Audio MHD600/4 amplificatore marino full range quattro canali Classe D. Garantito dal miglior servizio RGsound.it. Dimensioni ultracompatte 243 x 49 x 211 mm – Potenza RMS 4 x 150 W.



Caratteristiche MHD600/4
Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω 150 W RMS x 4
@ 3 Ω 150 W RMS x 4
@ 2 Ω 150 W RMS x 4
@ 1.5 Ω 150 W RMS x 4
Bridged @ 8 Ω 300 W RMS x 2
Bridged @ 4 Ω 300 W RMS x 2



Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 150 W RMS x 4
@ 3 Ω 150 W RMS x 4
@ 2 Ω 150 W RMS x 4
@ 1.5 Ω 150 W RMS x 4
Bridged @ 8 Ω 300 W RMS x 2
Bridged @ 4 Ω 300 W RMS x 2



Specifiche generali MHD600/4

Frequency Response 6 Hz – 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >110 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >88.2 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >300 / 50 Hz
Damping Factor @ 2 Ω >150 / 50 Hz
THD+N @ Rated Power <0.03% @ 4 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 200 mV – 2 V RMS to 800 mV – 8 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)



Signal Processing MHD600/4

Filter Modes Low-Pass or High-Pass
Filter Slope (dB/Octave) 12 dB or 24 dB
Filter Frequency Range 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeatable? Yes
Remote Level Control Optional (HD-RLC)
Remote Level Modes 2 or All Channels
Channel Input Mode Switch Yes (2/4 ch.)
Pass-Through Preamp Output Type Buffered
Source Channel Selection for PreOuts Yes



Dimensioni MHD600/4

Height (H) 1.93 in / 49 mm
Width (W) 10.74 in / 273 mm
Depth (D) 8.29 in / 211 mm
