M650-CCX-SG-WH Coassiali Marini A Due Vie 165 Mm

Il prezzo originale era: 336,00 €.Il prezzo attuale è: 95,99 €.

Assistenza online, sempre al tuo servizio.

Transazioni sicure, sempre

Pagamenti affidabili per acquisti affidabili

Resi senza domande

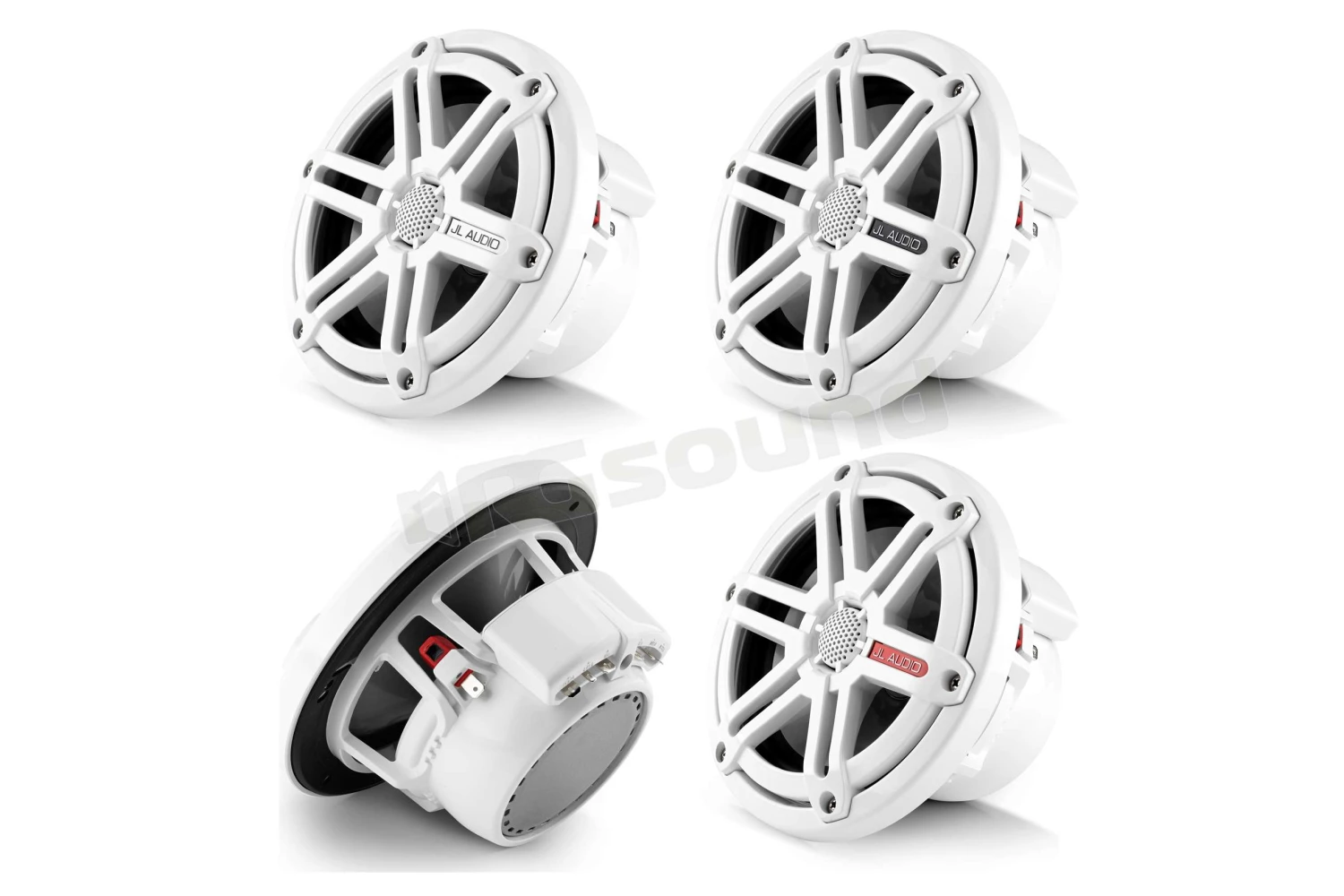

JL Audio M650-CCX-SG-WH Serie M coppia coassiali a due vie 165mm di alta gamma per uso nautico. Coppia di griglie sportive incluse. Tweeter di 25mm con cupola in seta e magnete in neodimio.

Caratteristcihe M650-CCX-SG-WH

Description:	Cockpit Coaxial Speaker System 6.50 in. woofers with separate 1.0 in. dome tweeters
Woofers:	Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated for marine duty. Vented motor with marine-grade stainless steel rear diffuser plate. Precisely engineered dust cap profile for smooth upper-end response. Marine-grade, synthetic fiber spider with progressive roll design. DMA-optimized long-excursion design for enhanced output, bass extension and power handling. UV-resistant polymer baskets encapsulate motor structure. Optimized for cockpit-mount (infinite baffle).
Tweeters:	Neodymium motor system; 1-inch silk dome diaphragm with specially formulated treatment to withstand UV and salt-spray exposure. Ferrofluid-cooled and damped for improved response and power handling. Permanent grille-mounted design ensures optimal high-frequency performance with no loss of woofer radiating area.
Crossover Networks:	True two-way crossover with 1st order low-pass filter and 2nd order high-pass filter. Solid-state tweeter protection prevents tweeter failures due to abuse and resets automatically. Crossovers mount directly to woofer baskets, requiring no additional mounting provision.
Continuous Power Handling:	75 Watts
Recommended Amp Power:	25 – 150 Watts
System Efficiency:	89.5 dB @ 1W/1m
System Nominal Impedance:	4 ohm
System Frequency Response:	55 Hz – 25 KHz ± 3 dB

JL Audio M650-CCX-SG-WH

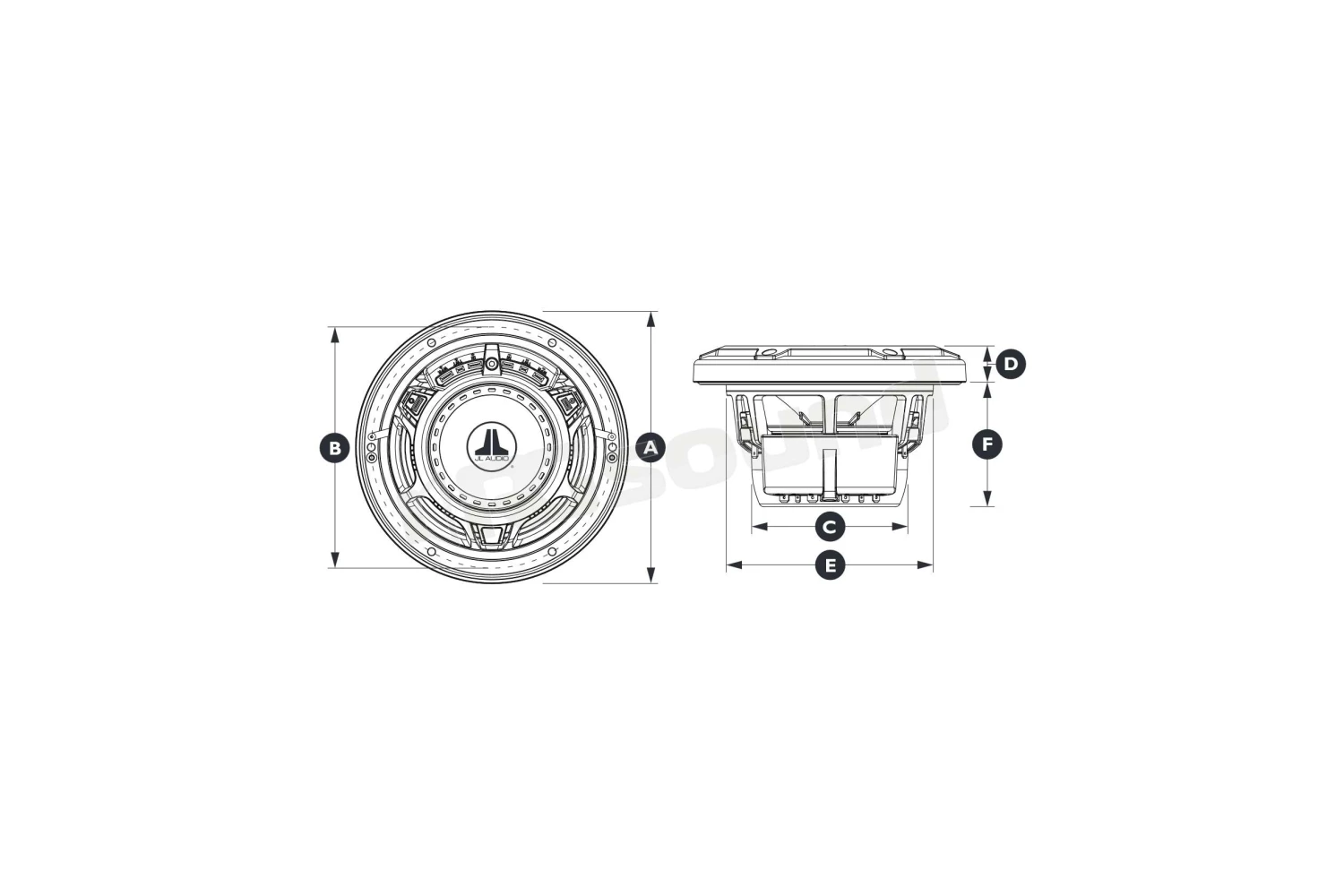

Grafico e tabella delle dimensioni del M650-CCX-SG-WH:

JL Audio M650-CCX-SG-WH

DIMENSIONI M650-CCX-SG-WH
Woofer Frame Outer Diameter* (A)	6.55 in. / 166 mm
Bolt Hole Circle (B)	5.79 in. / 147 mm
Motor Overmold Outer Diameter (C)	3.75 in. / 95 mm
Woofer Frontal Grille Protrusion* (D)	0.91 in. / 23 mm
Woofer Mounting Hole Diameter (E)	5.00 – 5.25 in. / 127 – 133 mm
Woofer Mounting Depth (F)	2.95 in. / 75 mm

Tipologia	Coassiale
Potenza MAX	Watt
Dimensione Altoparlante	165 mm
Potenza RMS	75 Watt
Diametro griglia	166 mm
Impedenza	4 Ohm
Foro di installazione	133 mm
Sensibilità	89.5 dB
Profondità di installazione	75 mm
Risposta in frequenza	55 – 25 Hertz
