M12IB6-SG-TB Sub 30 Cm – Griglia Sportiva

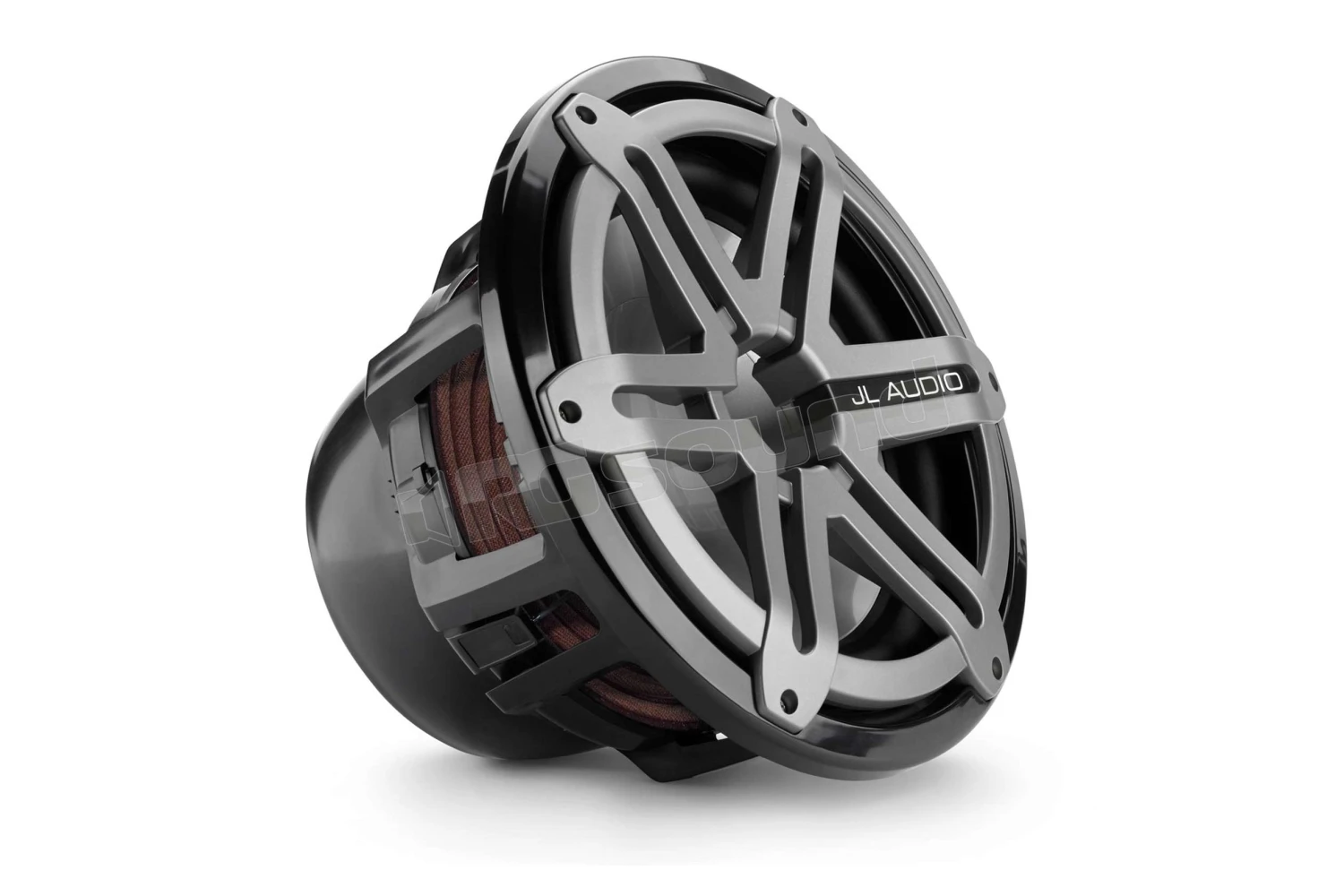

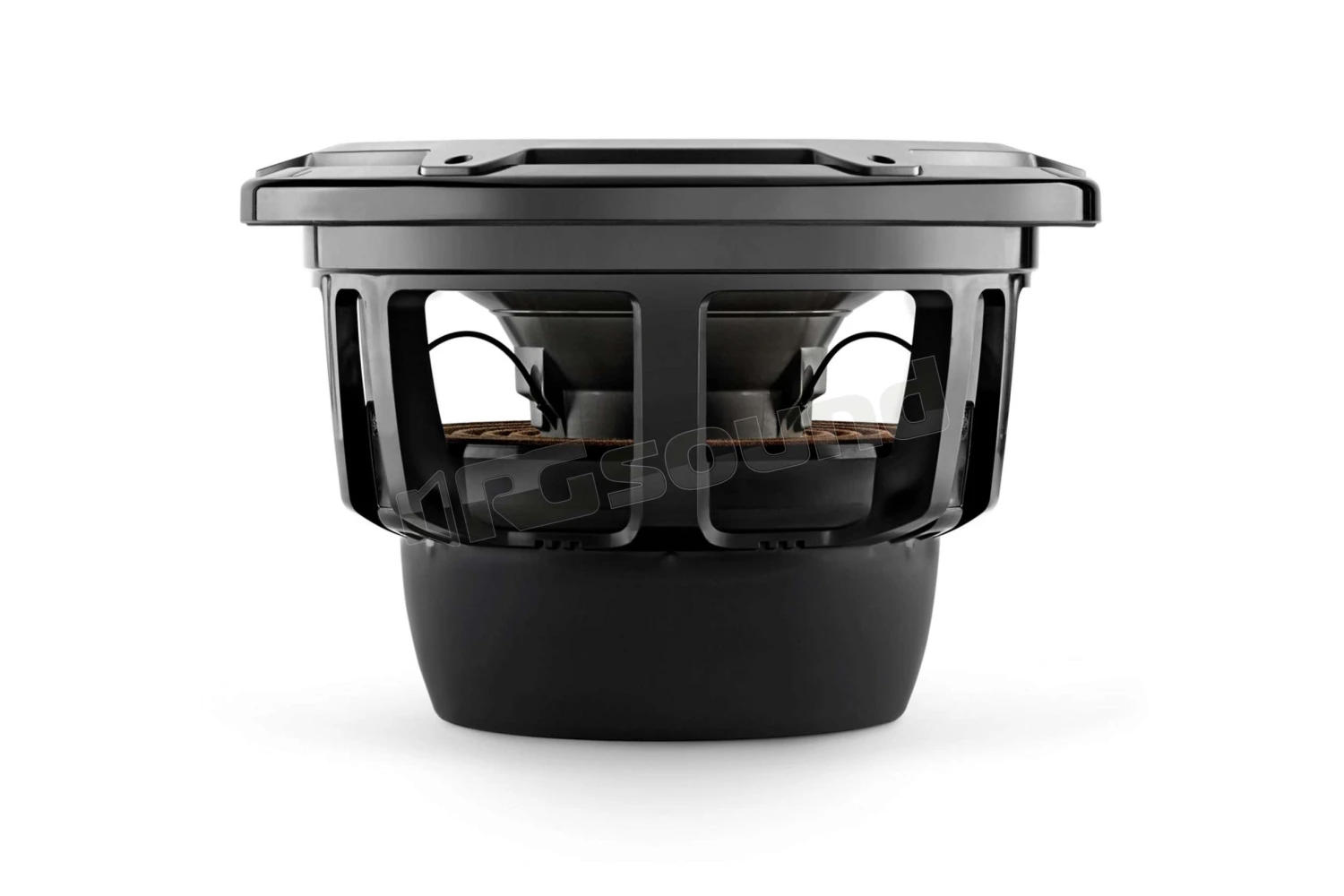

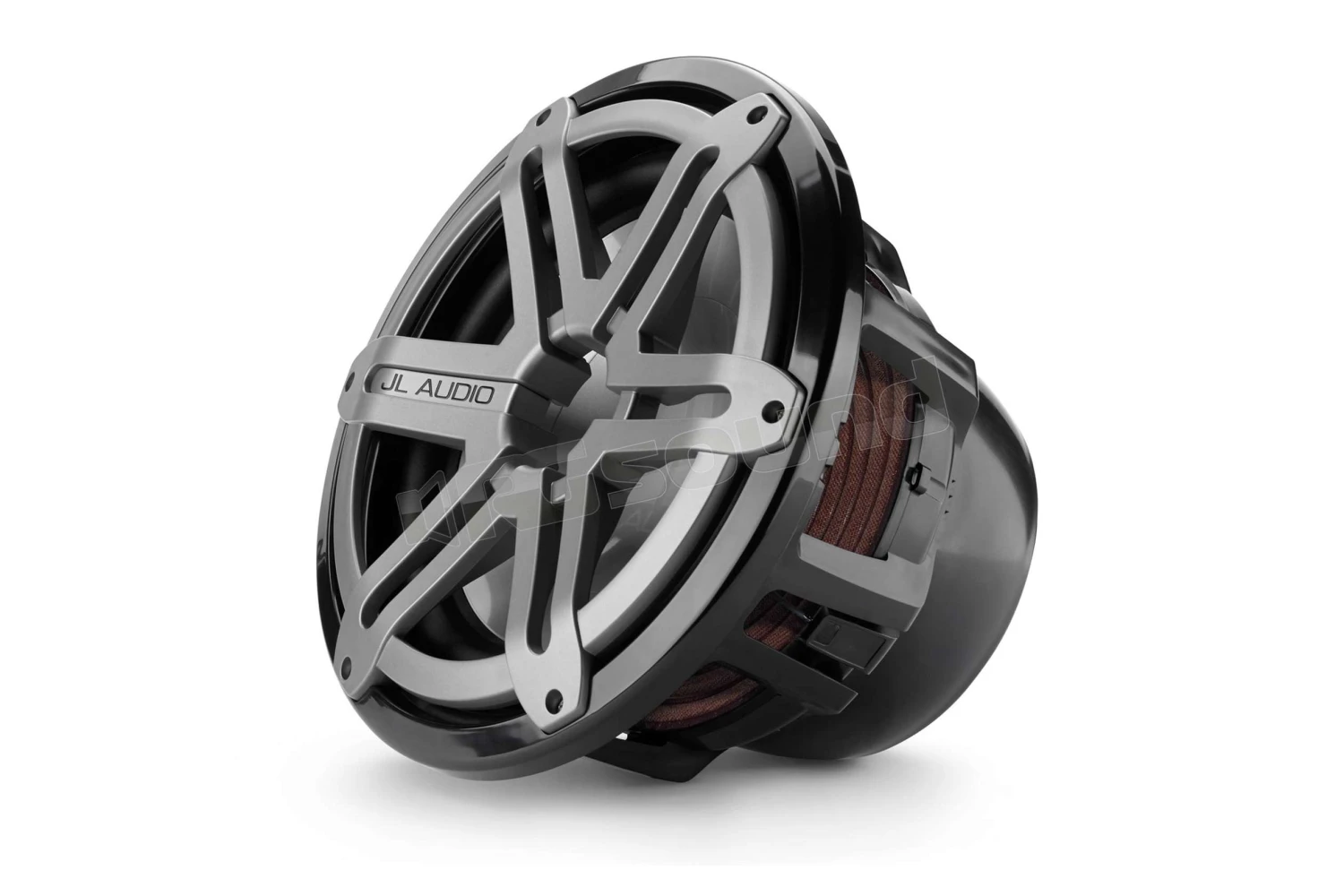

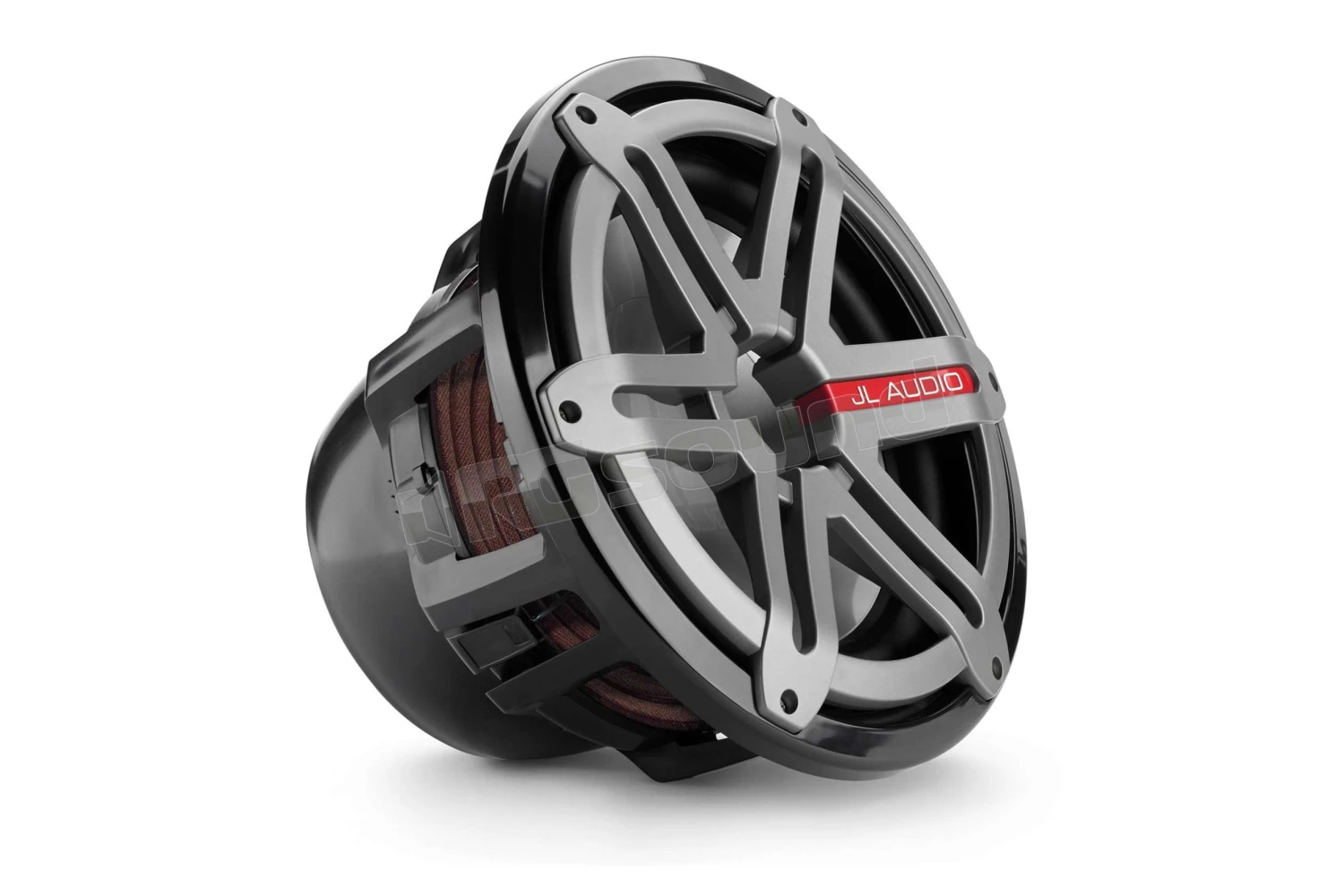

JL audio M12IB6-SG-TB subwoofer marino 300mm (12″) con finitura nera, modello griglia sportivo. Potenza 600W a 4Ohm.



Caratteristiche e specifiche M12IB6-SG-TB:

Continuous Power Handling (RMS) 600 W

Nominal Impedance (Znom) 4 Ω

Free Air Resonance (Fs) 35.34 Hz

Electrical “Q” (Qes) 0.856

Mechanical “Q” (Qms) 10.389

Total Speaker “Q” (Qts) 0.791

Equivalent Compliance (Vas) 1.99 cu ft / 56.35 L

One-Way Linear Excursion (Xmax) *0.73 in / 18.5 mm

Efficiency (1 W / 1 m) **86.7 dB SPL

Effective Piston Area (Sd) 80.54 sq in / 0.052 sq m

DC Resistance (Re) 3.543 Ω



Dimensioni M12IB6-SG-TB:

Nominal Diameter 10.0 in / 250 mm

Overall Diameter 14 in / 356 mm

Mounting Hole Diameter 12.0625 in / 306 mm

Bolt Hole Circle Diameter 12.813 in / 325 mm

Motor Outer Diameter 8.84 in / 225 mm

Mounting Depth 8.05 in / 204 mm

Driver Displacement 0.153 cu ft / 4.33 L

Net Weight 23.8 lb / 10.8 kg



Dimensioni cassa per M12IB6-SG-TB:

Infinite Baffle Use  Yes (preferred)

Min. Sealed Enclosure Volume 2.0 cu ft / 56.6 L (or larger)

Optimum Sealed Enclosure Volume 3.0 cu ft / 70.8 L
